TIMELINE
09/2023 – 12/2023
TYPE
Interface Design
REV Connected Interface
PROJECT
This project is conceptual and is not a Crown Equipment product.

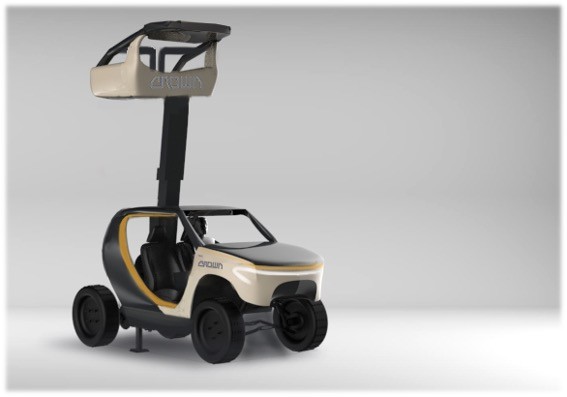

The REV Connected Interface is a set of 4 interfaces designed to emphasize safety and credibility for a concept UTV, the REV, a lifting UTV made for completing outdoor tasks and endeavors. This design was created as a personal project over a 3 month period in collaboration with an industrial design co-op at Crown Equipment. I completed all the UX / UI design for this project.
DESCRIPTION
TEAM
For the best viewing experience, please view this project on desktop.
Overview
Final
Process
01.
Project Overview
500,000 ladder-related injuries happen each year and around 300 of them are fatal.
Families across America are using unsafe ways to complete tasks around the house. Especially when it comes to heights, we need a new safe solution for homeowners.

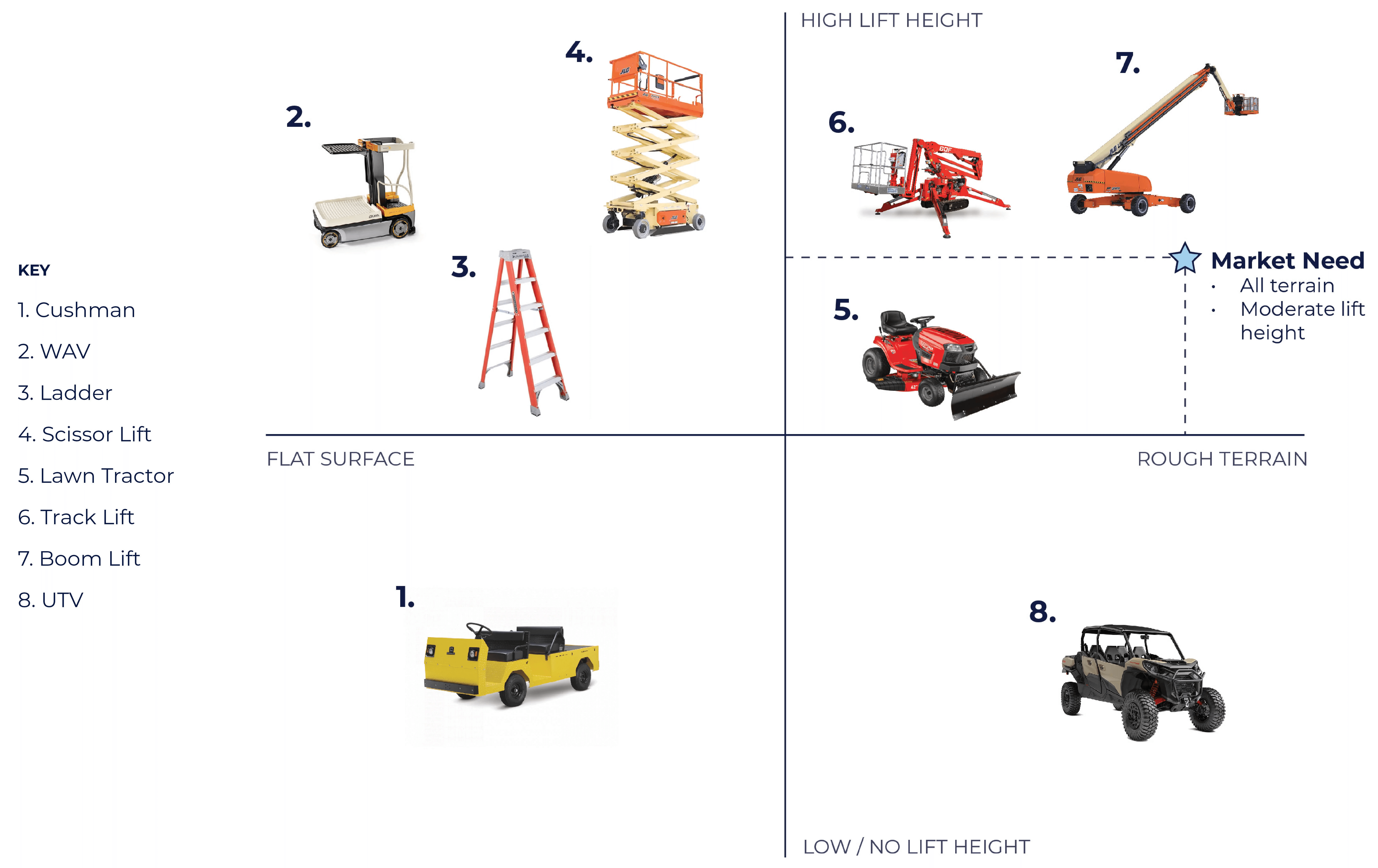

/ Market Placement

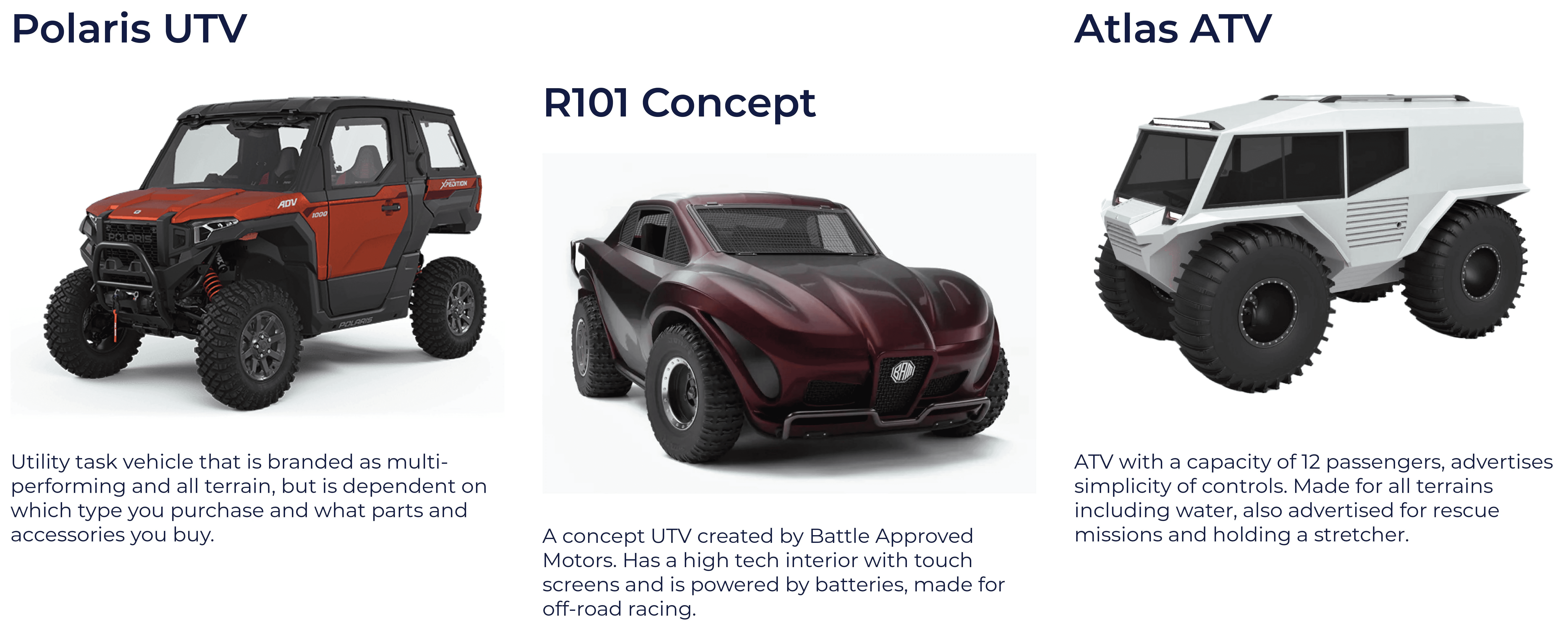

/ UTV Competitors and Concepts

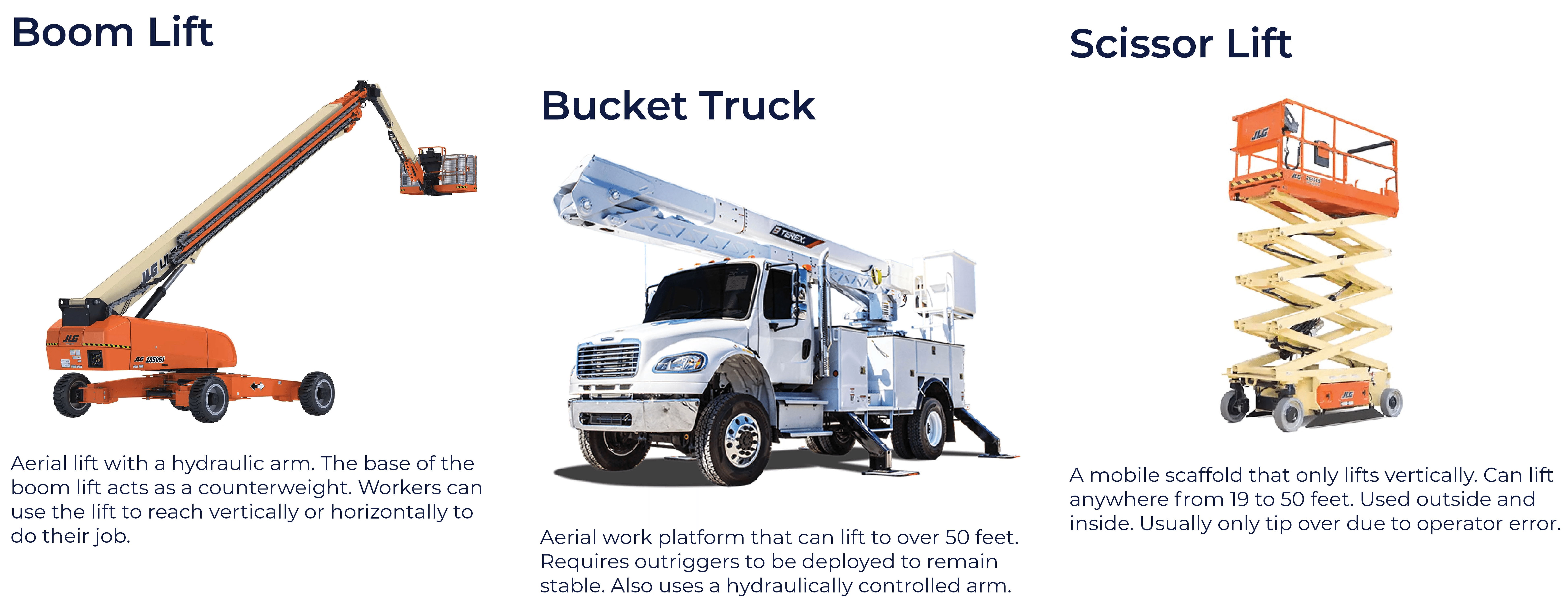

/ Lifting Competitors
Overview
Process
Final
/ Design Intent
02.
Interface Design Process
Emphasize safety features and establish credibility for the features of the REV

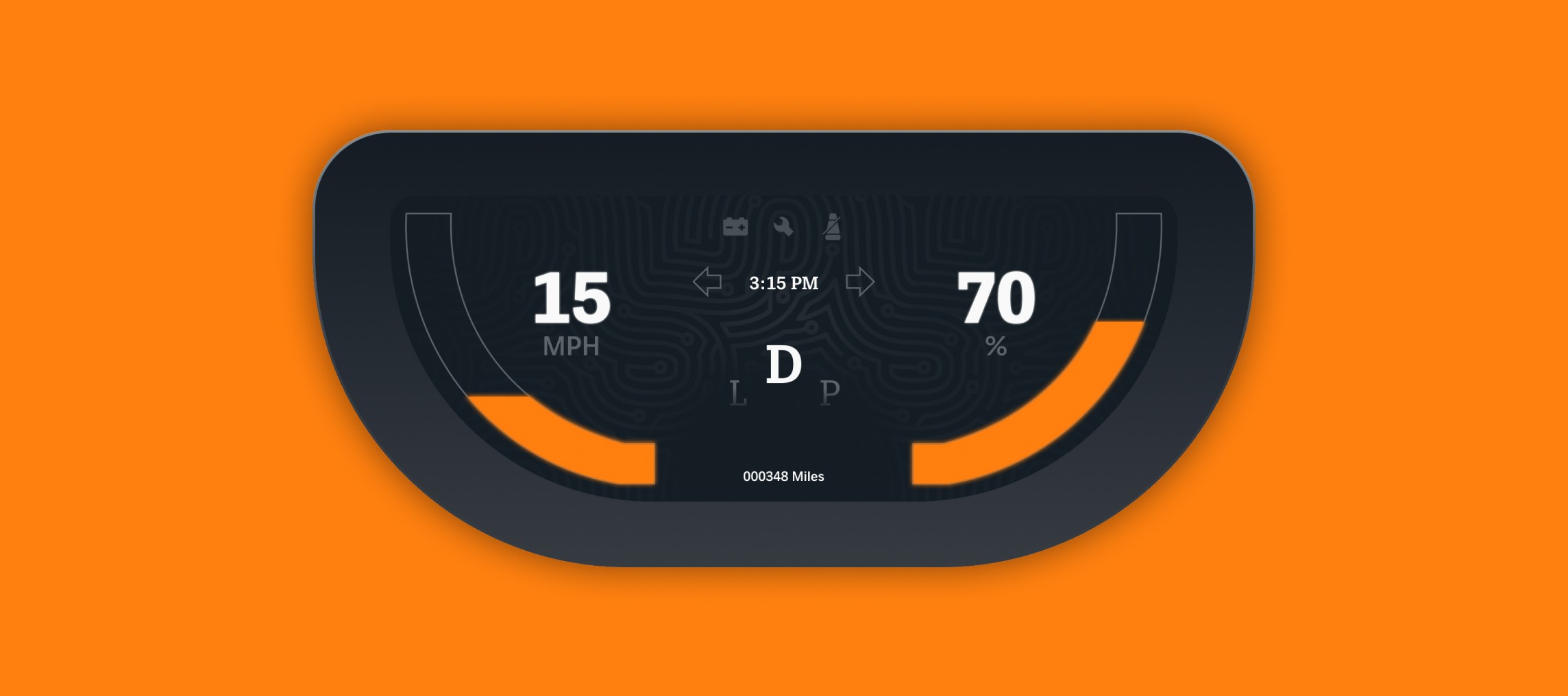

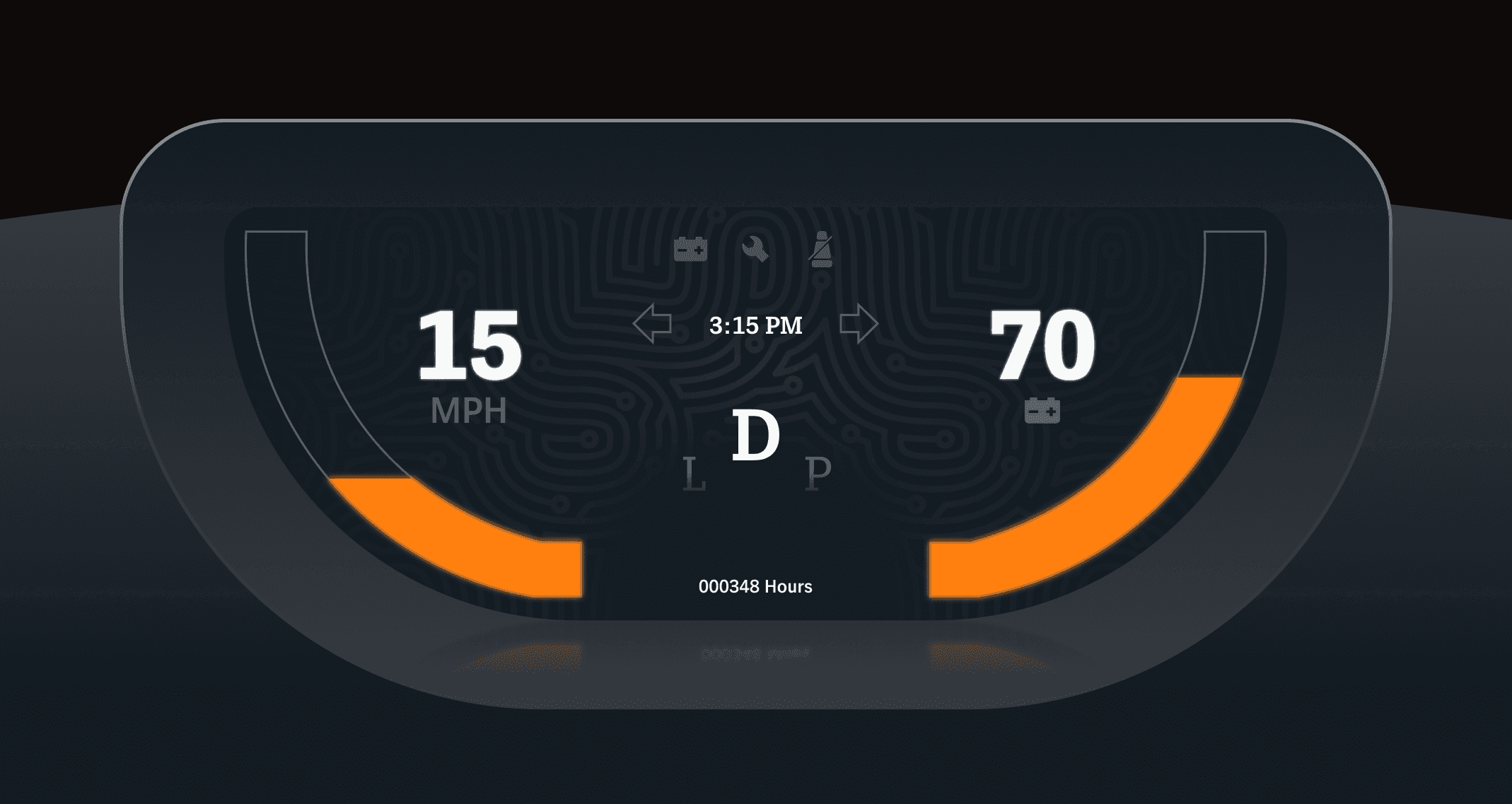

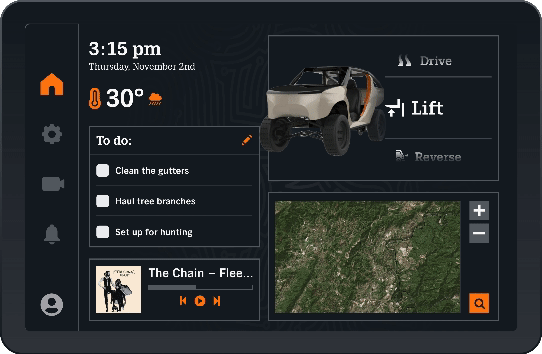

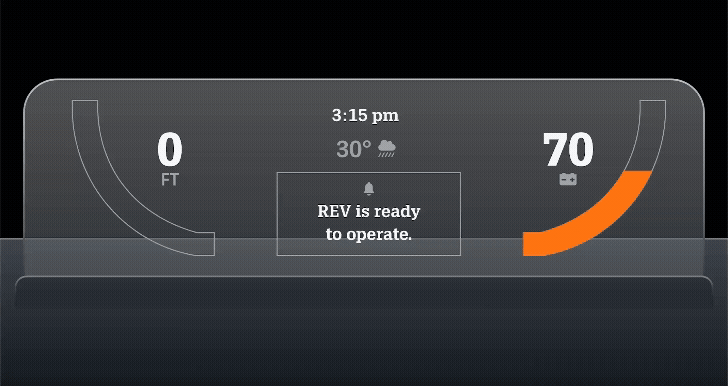

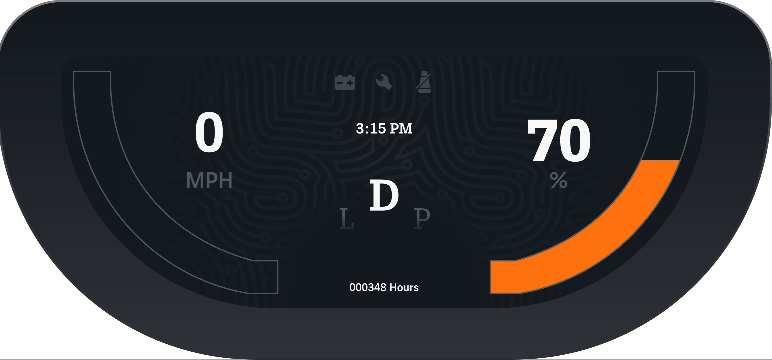

Create an interconnected dash cluster, center console screen, and lift screen.
/ Mood Board

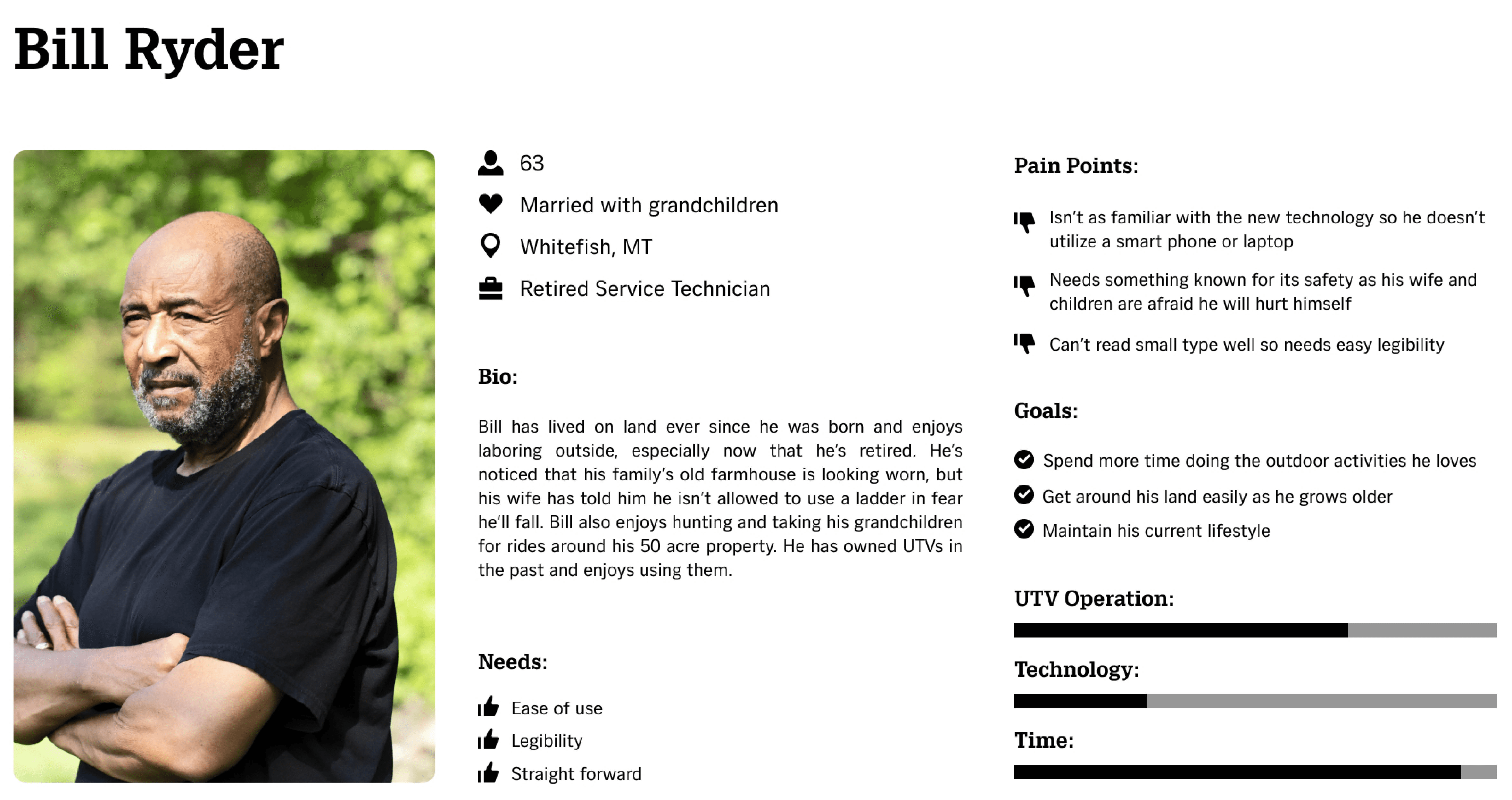

/ User Personas

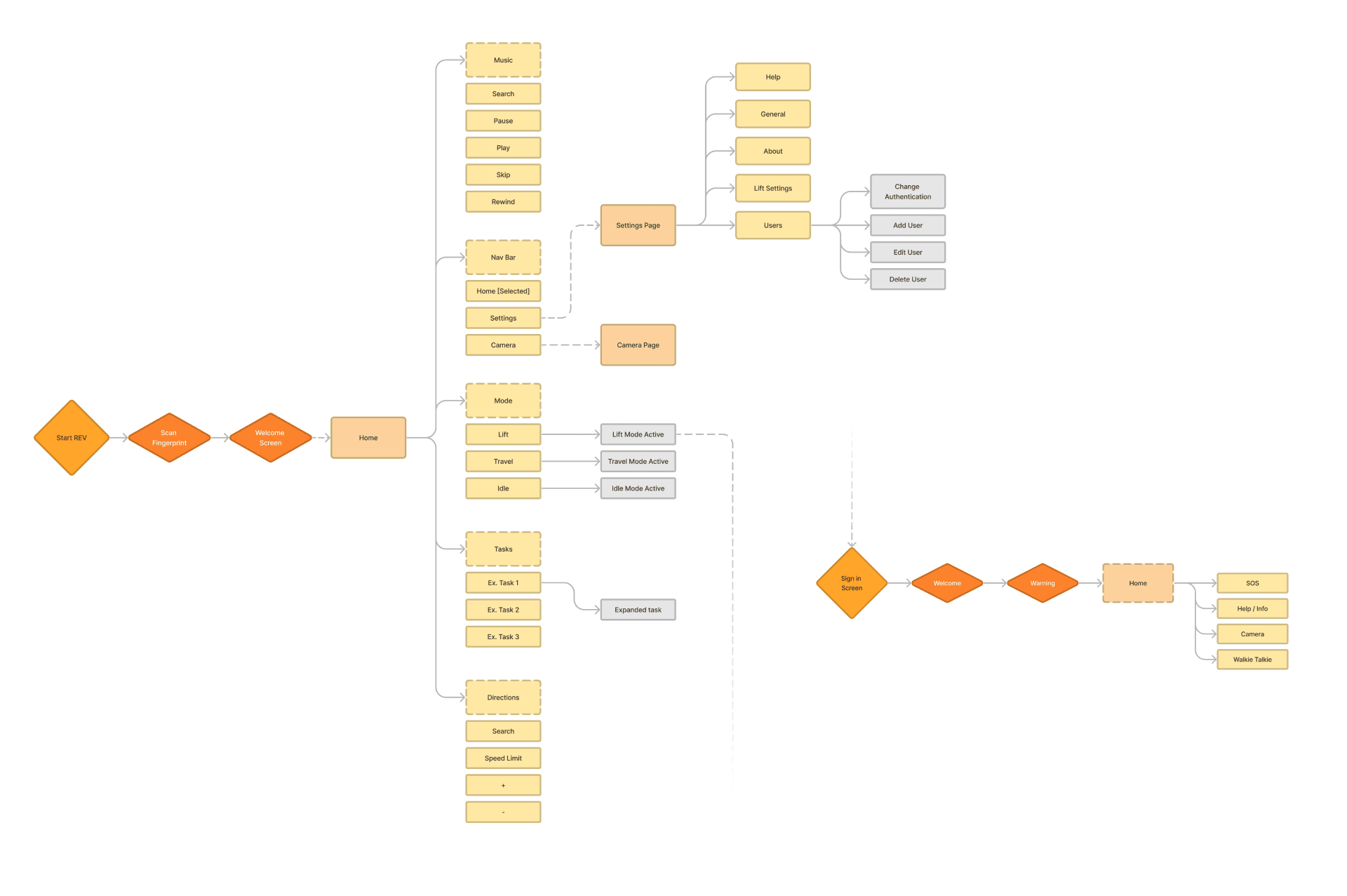

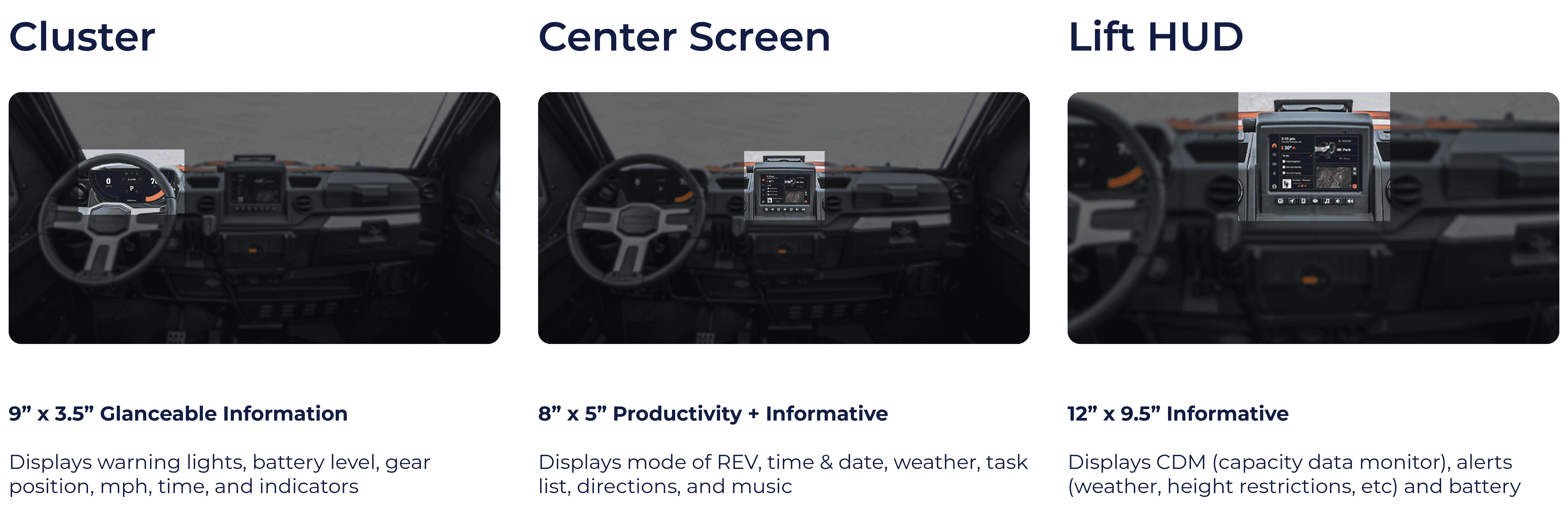

/ Screen Functions

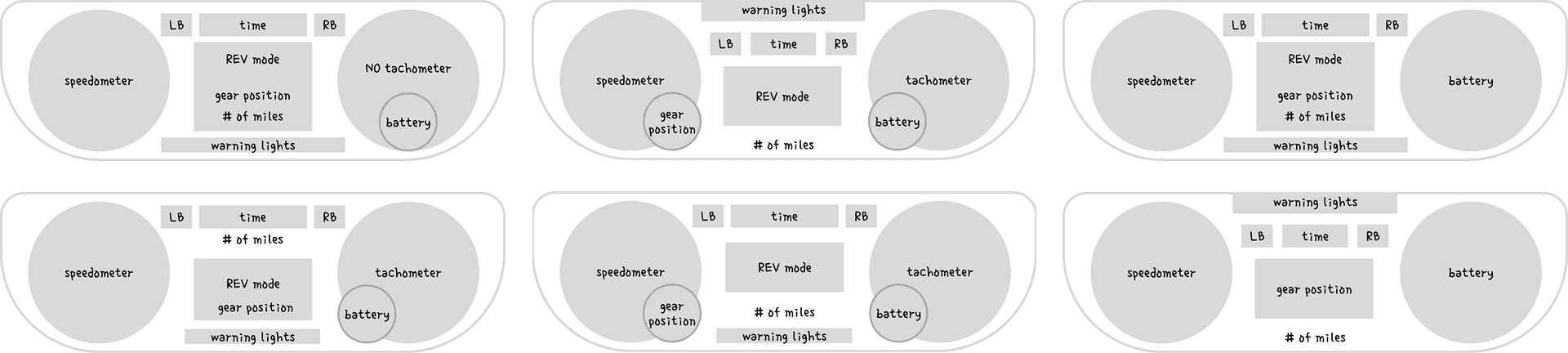

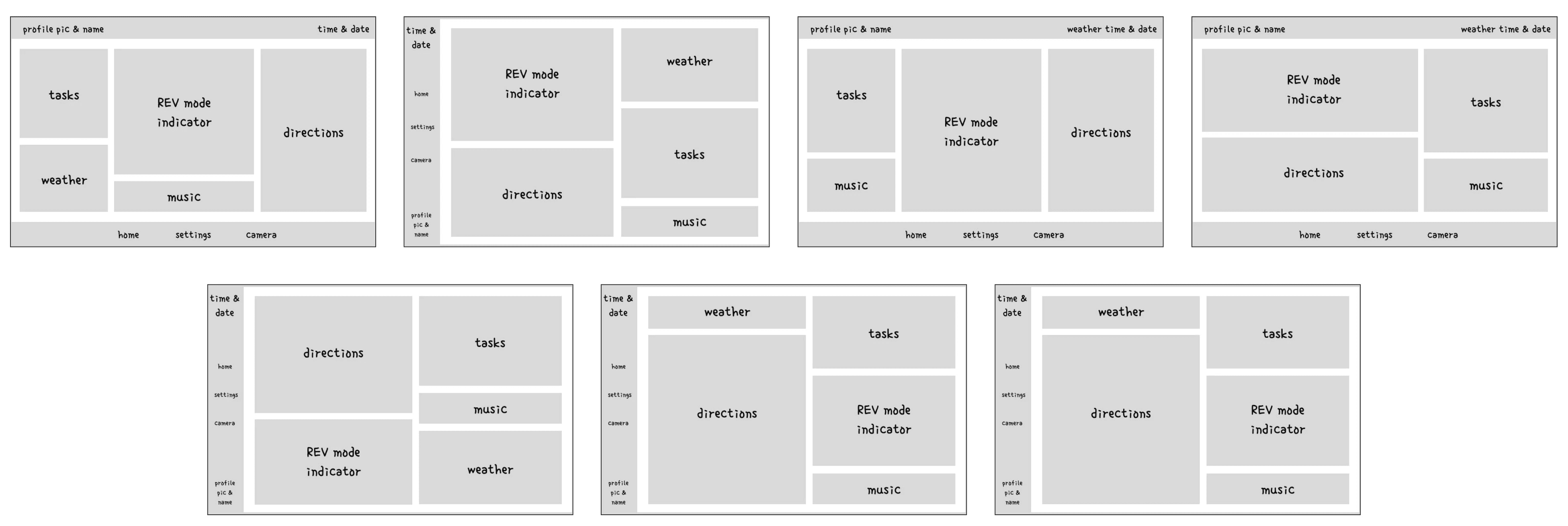

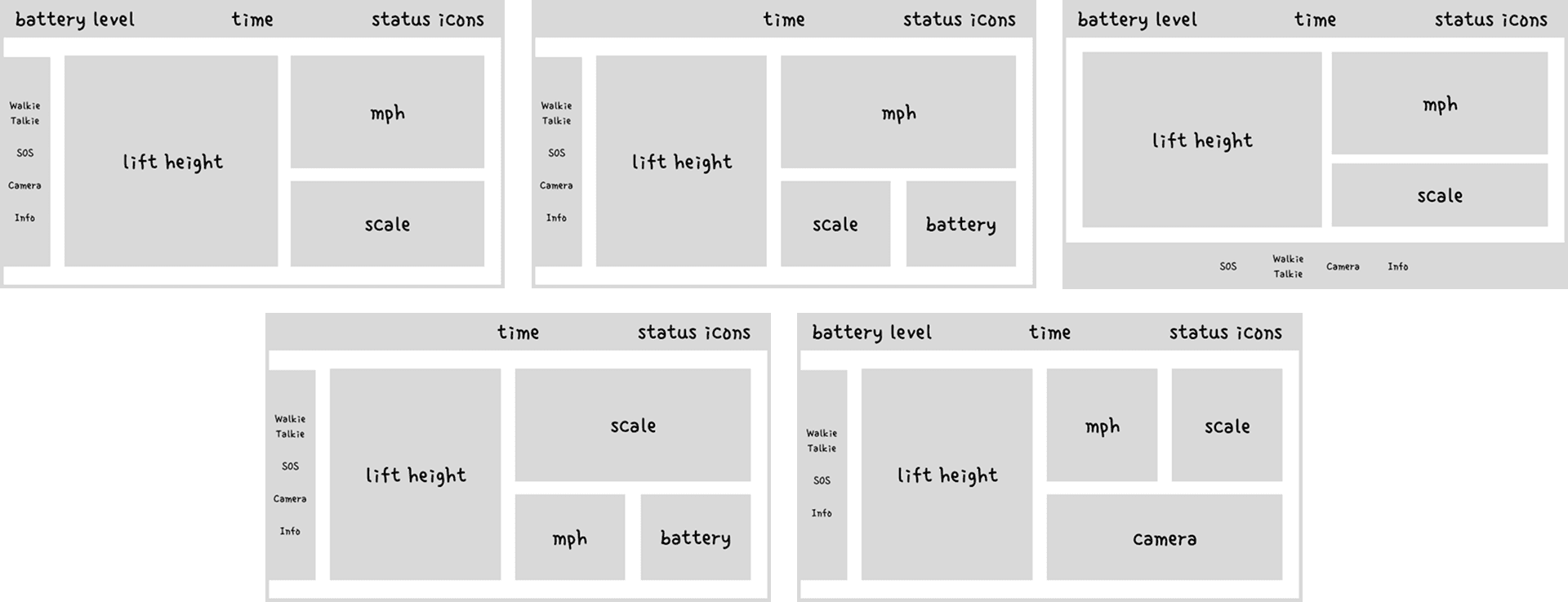

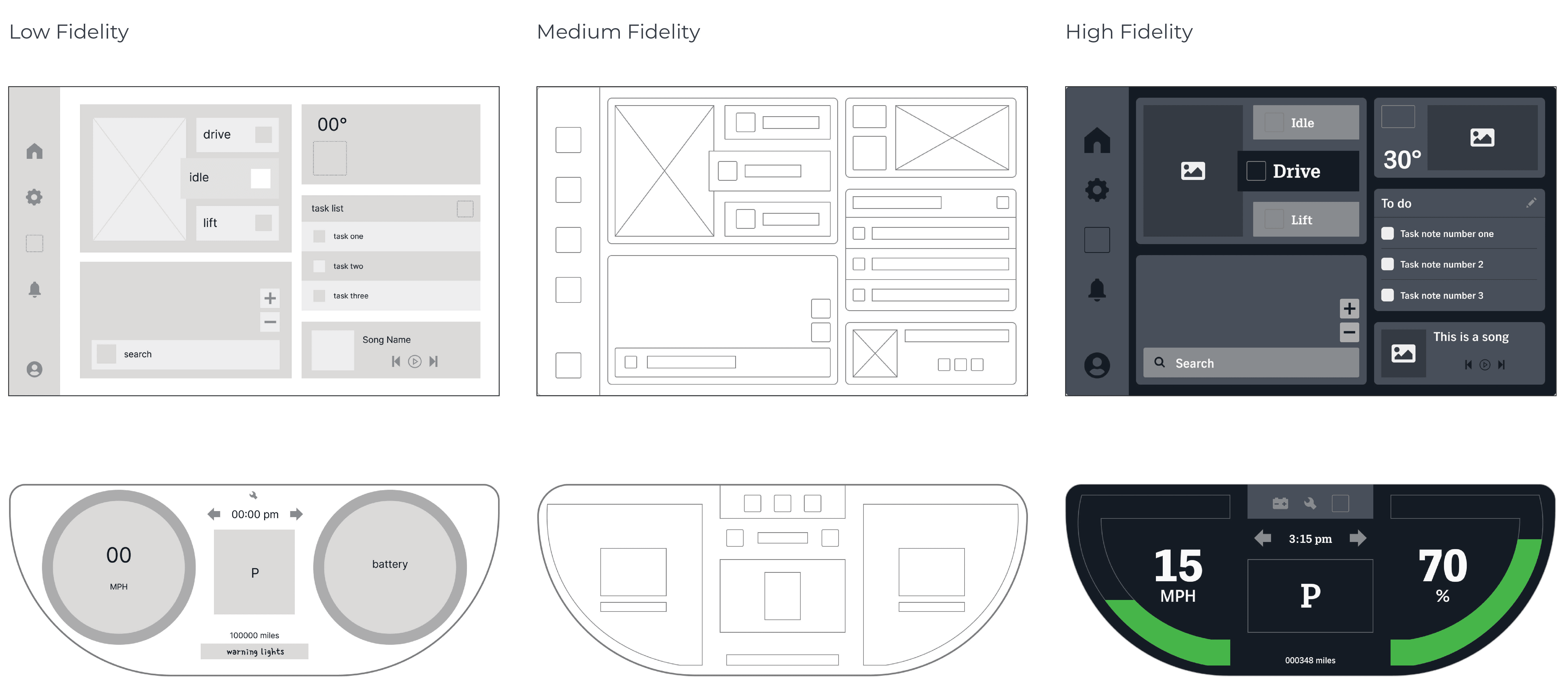

/ Low Fidelity Ideation
In order to get critiques on the best approach to layout the screen designs, I created multiple low fidelity ideations to present.
Overview
Process
Final
03.

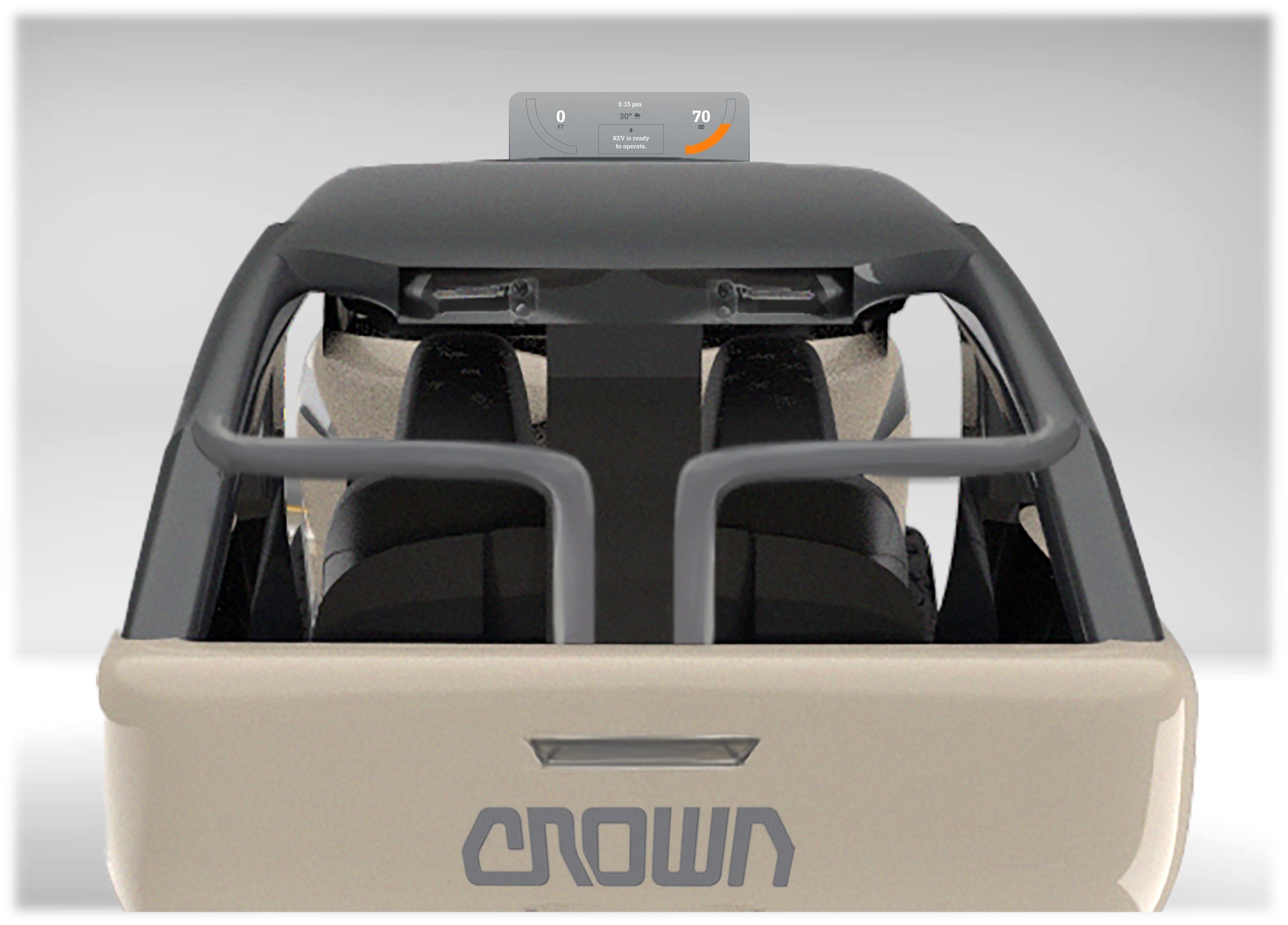

Final Renders and Screens
All renders were created by Ava Grudich, check out her process work here!

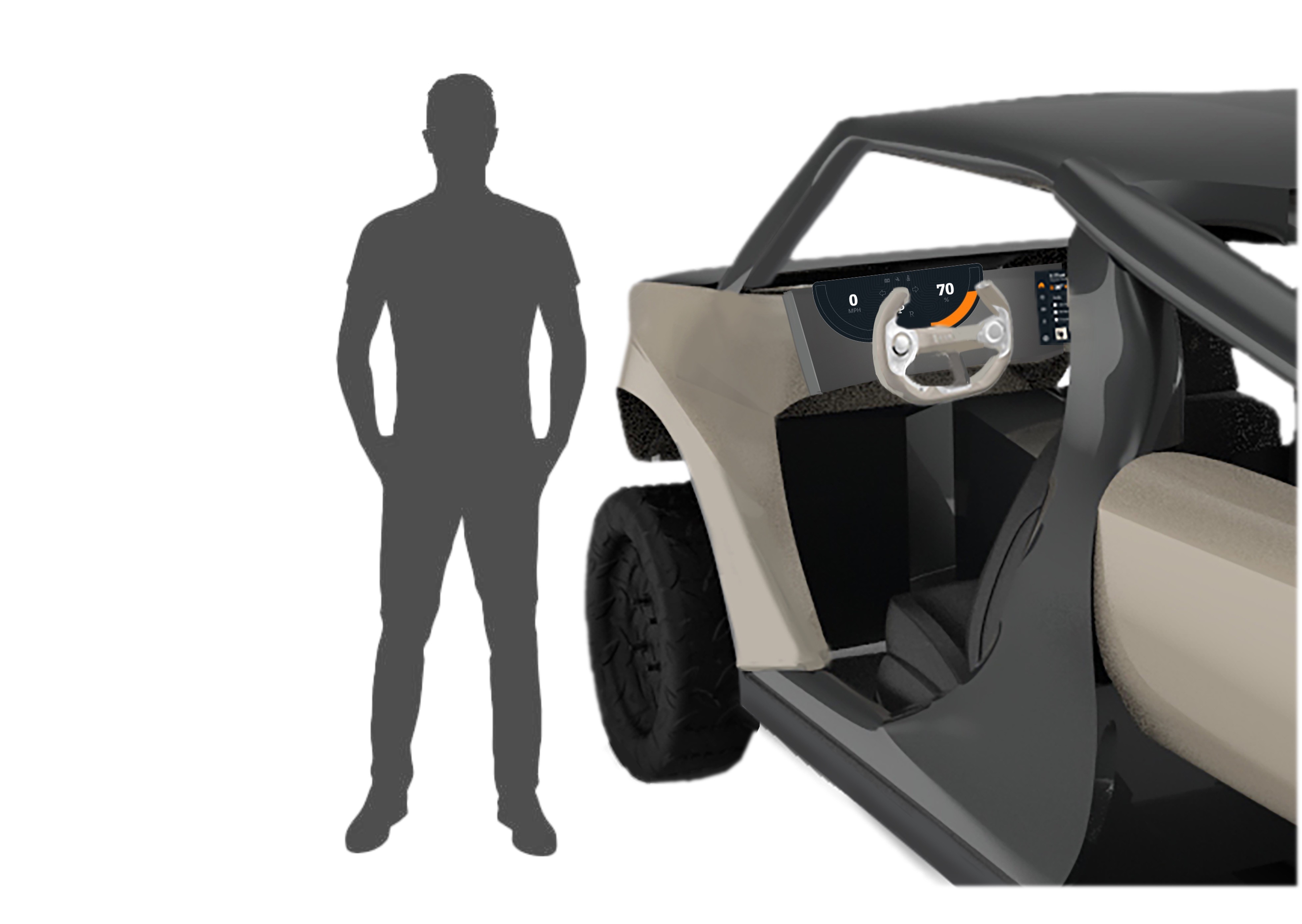

01. Operator gets into REV

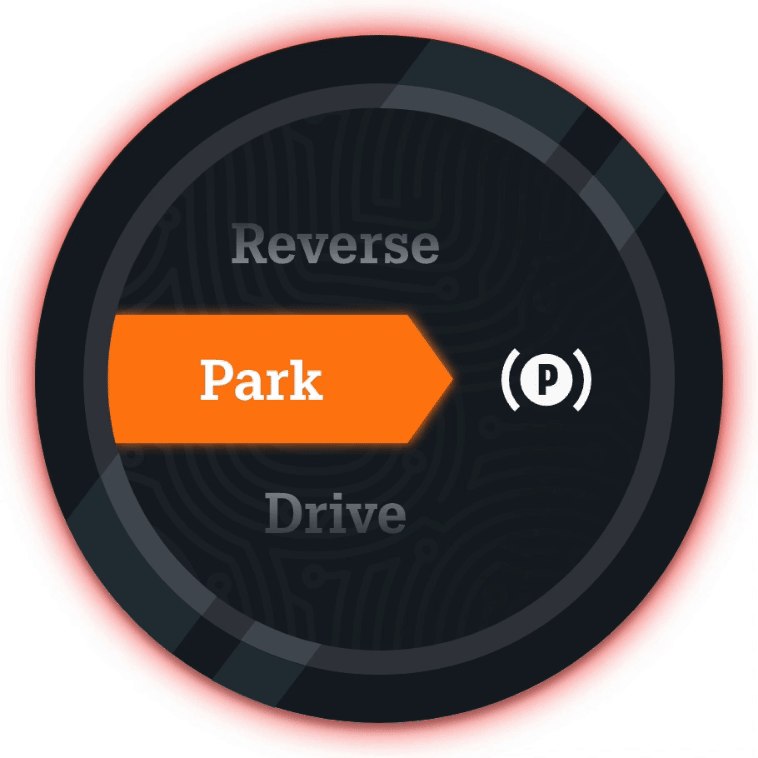

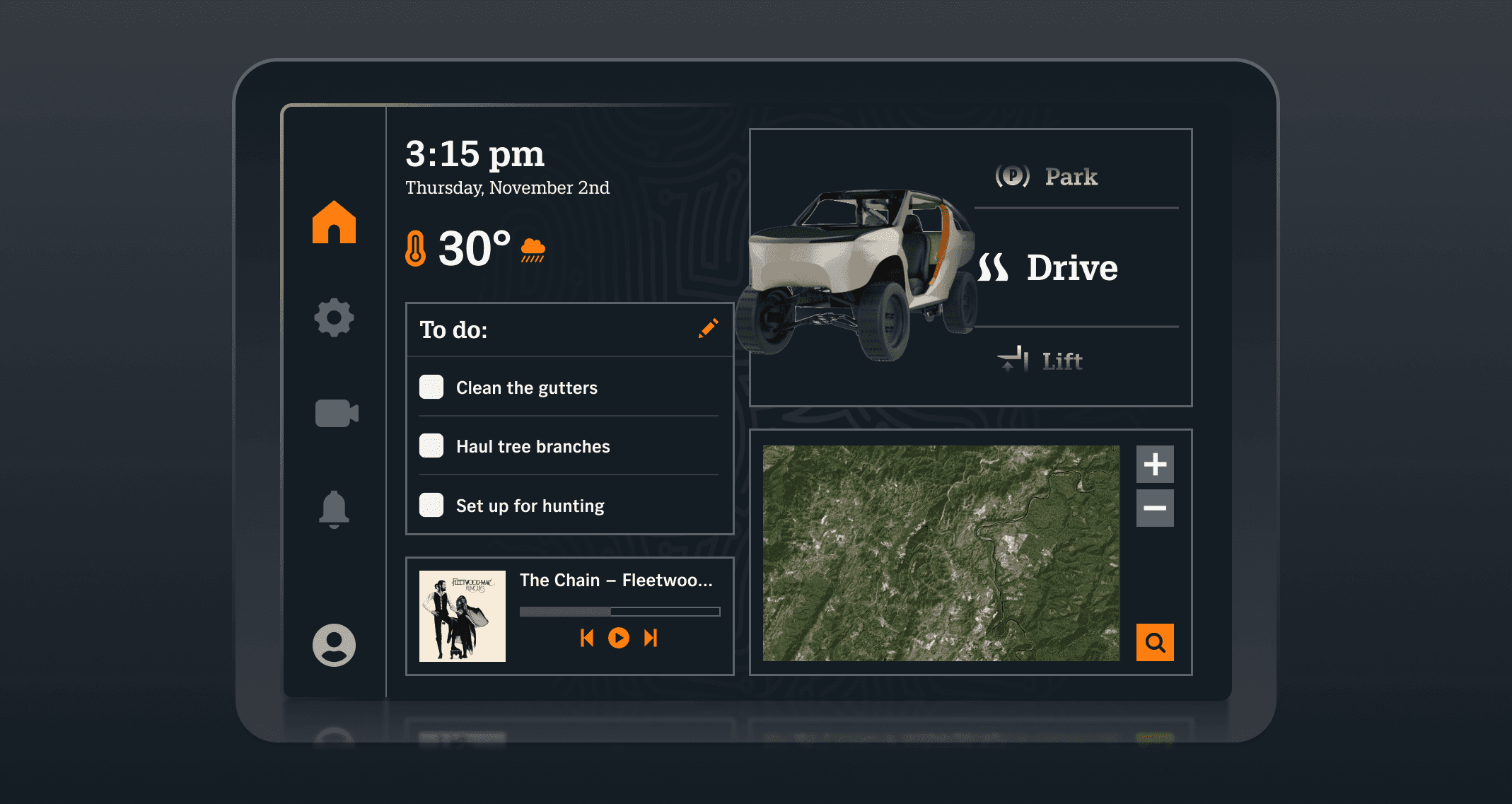

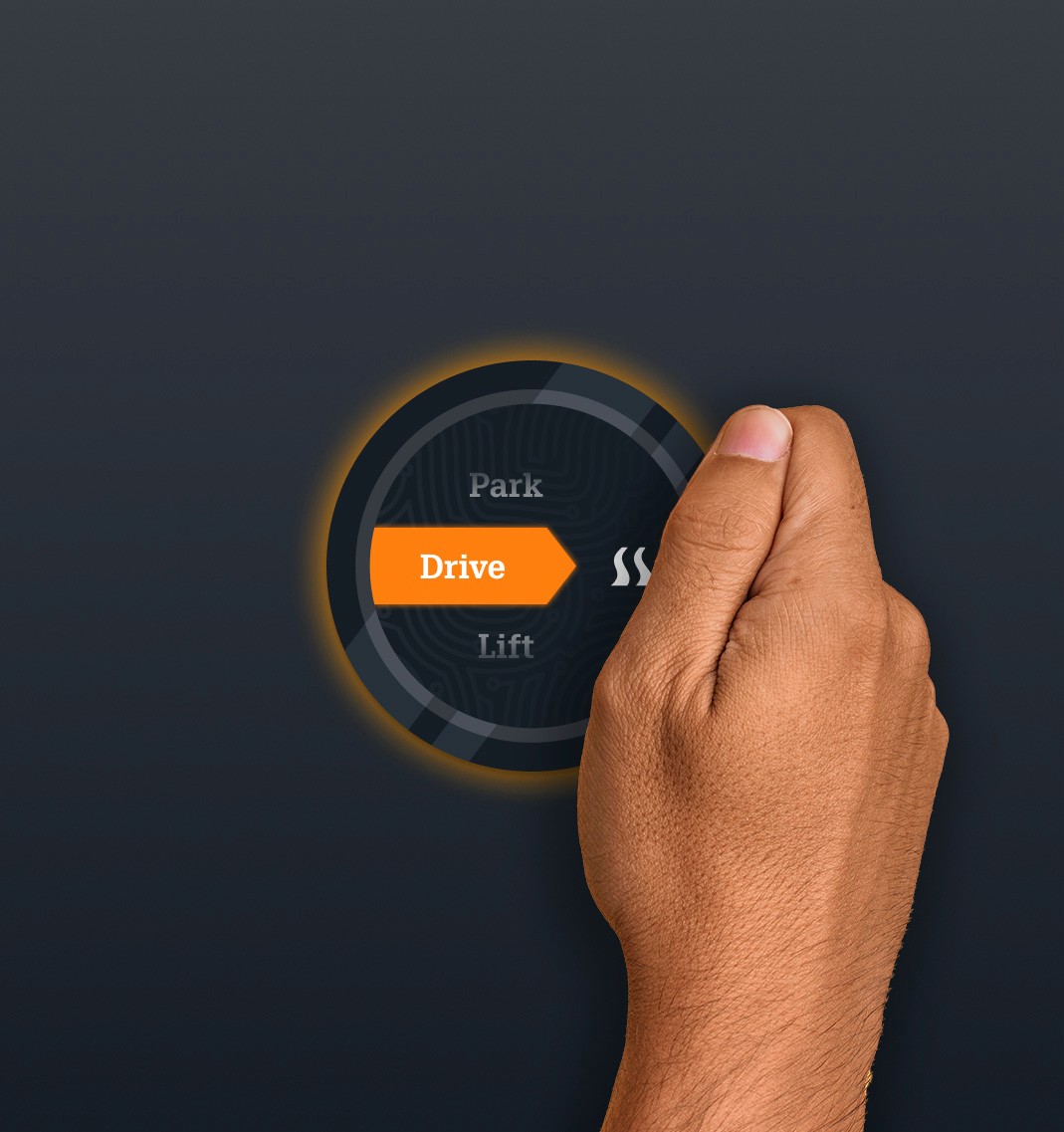

02. Operator switches to drive mode

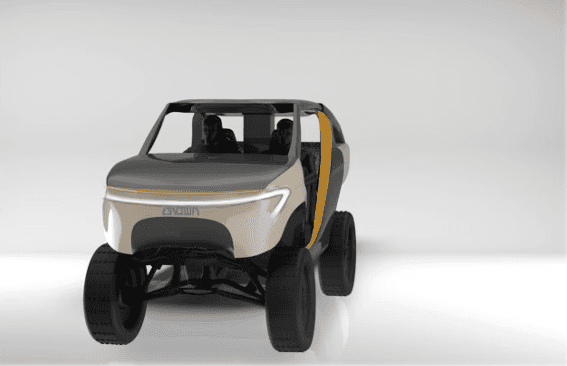

03. Operator drives to location
04. Operator reaches location and switches to lift mode

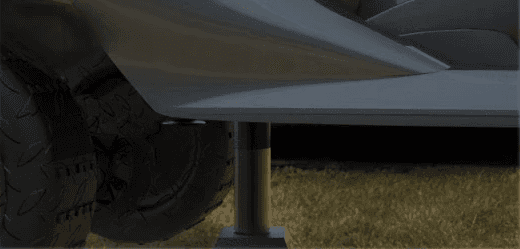

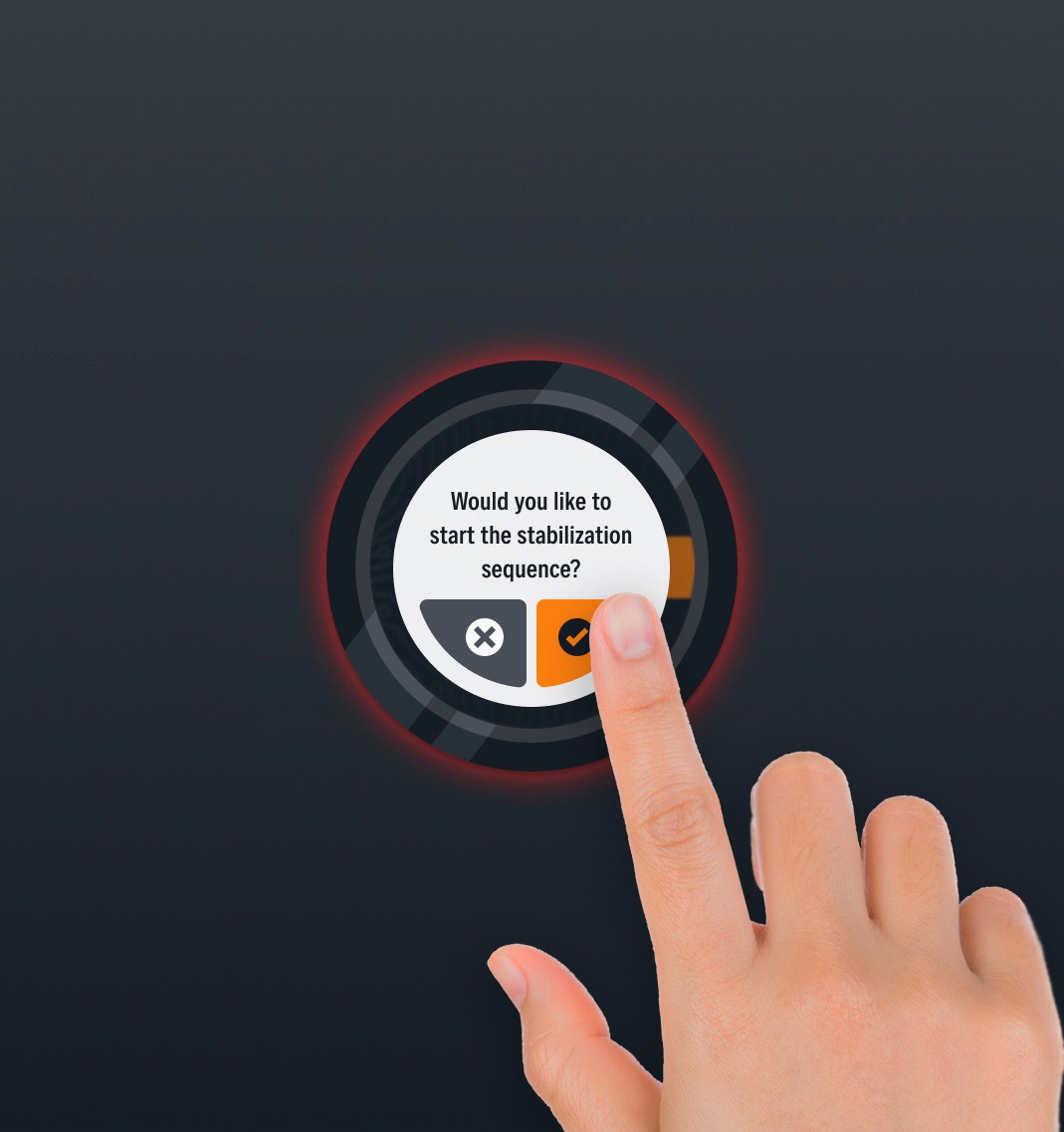

05. Operator remains in REV as jacks are deployed for stability
06. Operator gets in the back

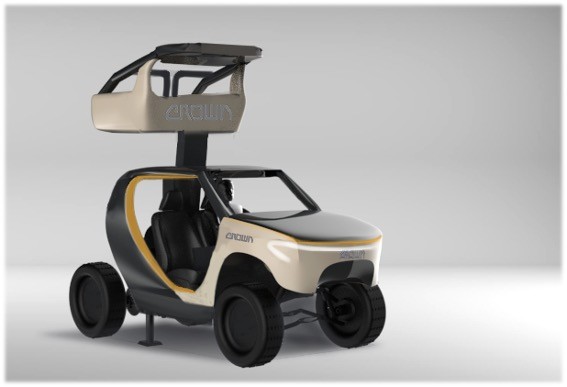

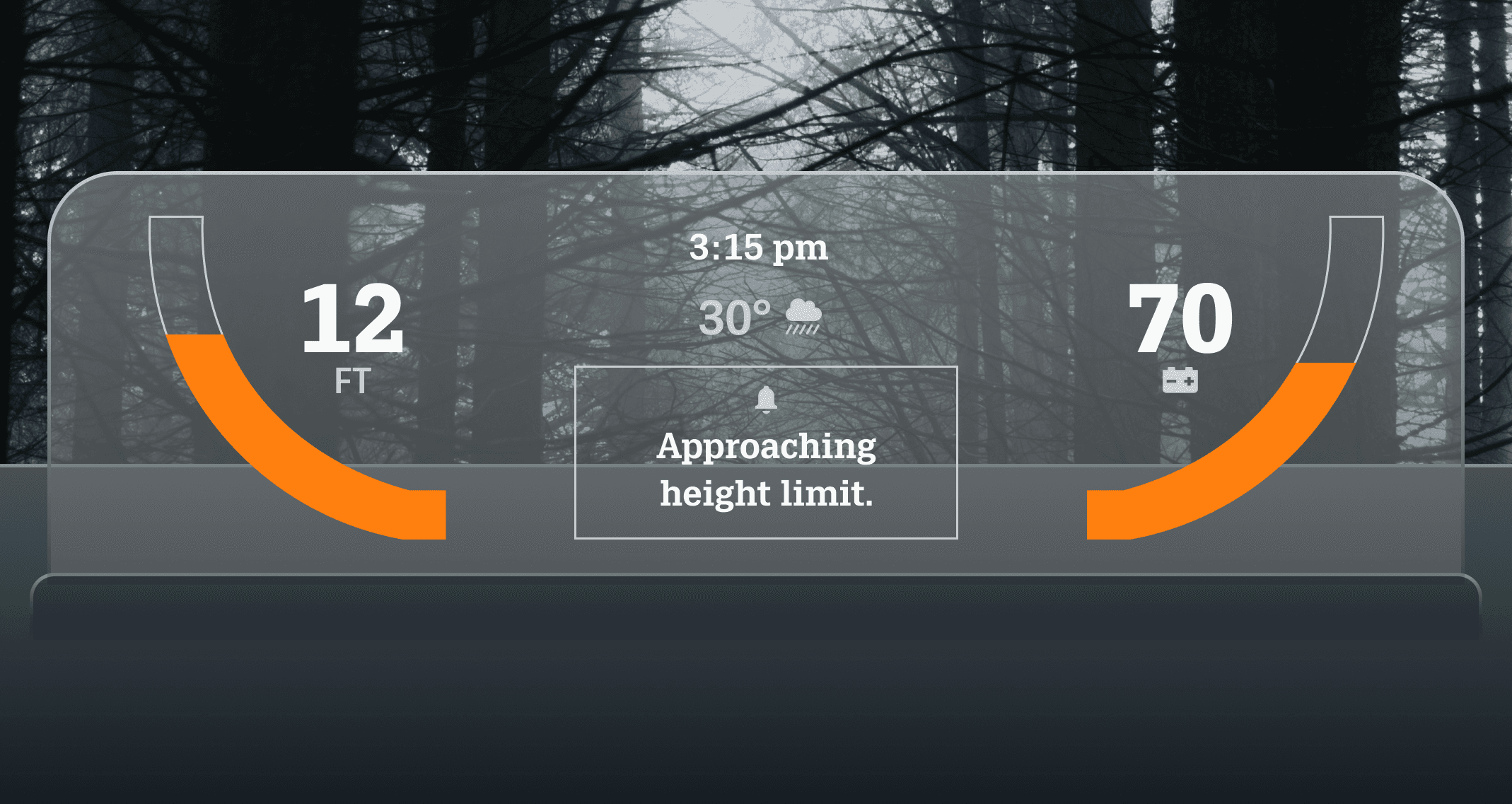

07. Operator lifts to height
08. Operator finishes job and lowers
09. Operator gets back into cab and switches to drive mode
